Laboratory

Clinical chemistry

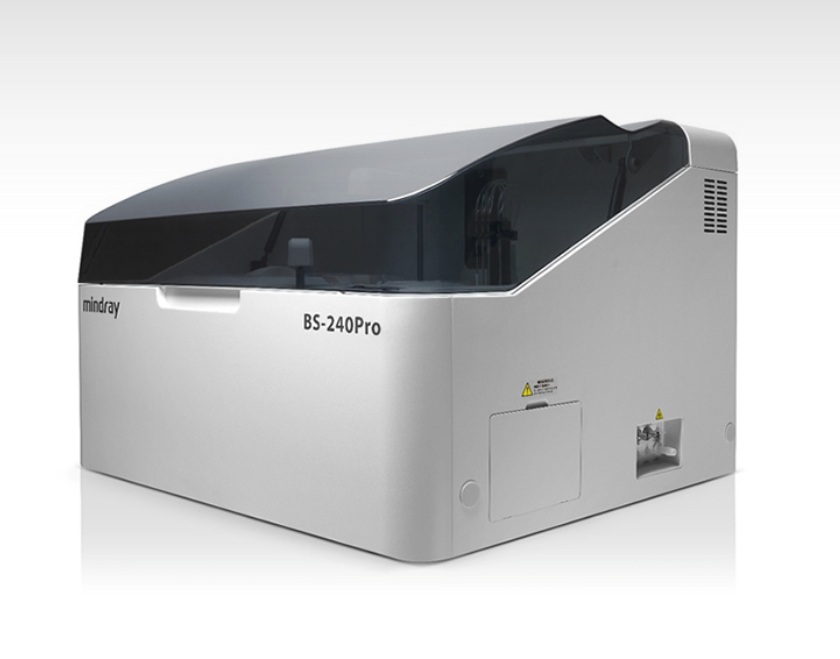

MINDRAY BS-240Pro

The Mindray BS-240Pro is a compact bench-top analyser designed for small to medium-sized laboratories, offering robust functionality, high sample capacity and efficient workflow management. It supports absorbance photometry, turbidimetry and optional ion-selective electrode (ISE) technology for electrolyte testing.

Large and flexible capacity with up to 100 sample positions and up to 100 reagent positions (50 fixed and 50 interchangeable).
Gratings photometer technology for reliable analytical performance.
Minimum reaction volume of 100 μL to support efficient reagent utilisation.

Easy loading and unloading of samples for improved laboratory workflow.
One-key calibrator import simplifies calibration management.
HbA1c smart-sampling function with onboard haemolysis capability.
Intelligent sample probe with optional clog detection.
Throughput of up to 360 tests per hour.
Optimised washing station helps support consistent performance and analyser uptime.
Optional ISE module available with easy access for expanded testing capability.
Compact and robust design ideally suited to laboratories seeking high performance in a bench-top analyser.

Mindray BS-240Pro

Mindray M680

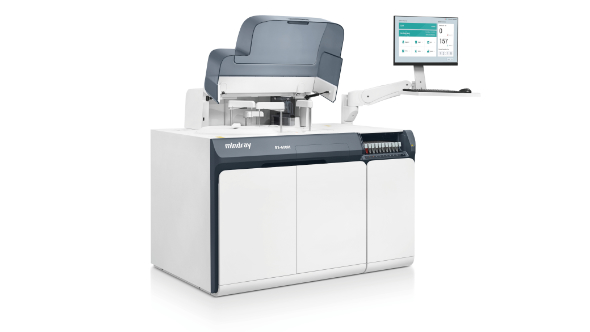

MINDRAY M680

The Mindray M680 is an integrated chemistry and immunoassay solution that combines clinical chemistry, immunoassay, ISE and whole-blood HbA1c testing within a compact 2.2 m² footprint.

BS-600M chemistry module with a throughput of 600 photometric tests per hour and up to 800 tests per hour with ISE.
CL-2600i immunoassay module with a throughput of up to 240 tests per hour.
180 sample positions with continuous rack loading for efficient, uninterrupted laboratory workflow.
40 dedicated STAT positions for priority processing of urgent samples.
Whole-blood HbA1c testing with onboard haemolysis, eliminating manual pretreatment and reducing biohazard risks and human error.

HbA1c throughput of up to 120 tests per hour with results traceable to IFCC and NGSP standards.
One-minute sample aspiration capability to improve laboratory productivity and turnaround times.
PDR optical platform with panoramic dynamic real-time monitoring and signal traceback technology for enhanced analytical accuracy.
FS-Sampling technology uses intelligent algorithms to improve sample aspiration accuracy and reliability.
360° Waterfall Vacuum Washing technology helps minimise carryover and maintain consistent analytical performance.
User-friendly operation with an intelligent interface, breathing LED indicators and no daily maintenance requirements.

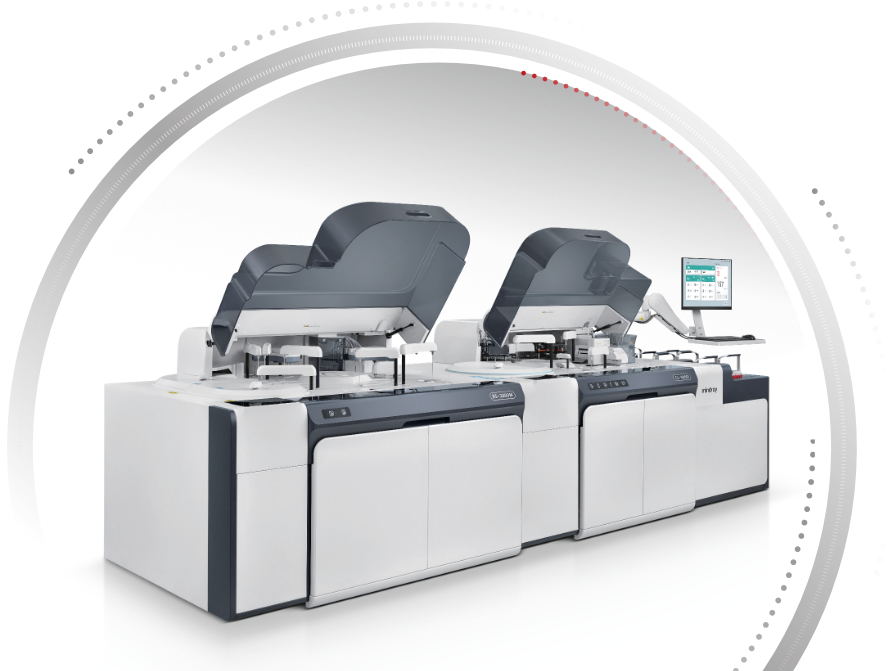

MINDRAY M1000

The Mindray M1000 is a chemistry and immunoassay integrated solution designed for large-scale laboratories, delivering high efficiency and rapid turnaround times within a compact 4.5 m² footprint.

Supports continuous loading of up to 580 samples at one time with automated sample handling.
Automated sample tube decapping improves workflow efficiency and reduces manual intervention.
High-speed onboard decapping of up to 550 tubes per hour.
Integrated UV disinfection system helps minimise biohazard risks during sample processing.
Throughput density of 640 tests per hour per square metre maximises laboratory productivity.

Combines the BS-2800M chemistry analyser, CL-8000i immunoassay analyser and intelligent sample processing line into a single solution.
360-degree barcode scanning enables reliable sample identification and tracking.
High-resolution camera automatically captures and records sample images for review and audit purposes.
Visual recognition technology supports simultaneous loading of different tube sizes and sample types.
Advanced technologies including PDR Optical Platform, VU-Mix™, FS-Sampling™ and HIL.L SI help deliver reliable and accurate results.
Intelligent sample scheduling and a well-balanced integrated workflow support efficient operation with one tube for both chemistry and immunoassay testing.

Mindray M1000

Caretium XI-1021

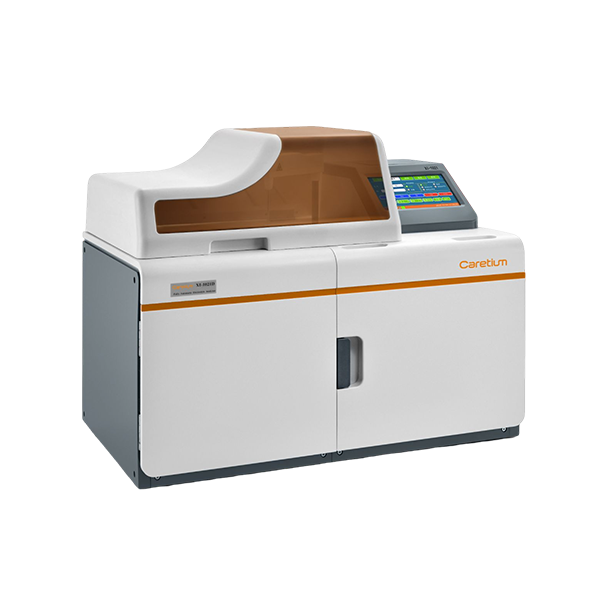

CARETIUM XI-1021

The Caretium XI-1021 is a fully automatic electrolyte analyser designed for high-throughput electrolyte testing with minimal operator intervention.

Reports complete ISE results in just 45 seconds, enabling rapid turnaround of electrolyte results.
Large-capacity sample system accommodates up to 60 samples at one time, including dedicated positions for calibration, QC and cleaning.
Fully automated sample handling accepts both centrifuge tubes and sample cups, with automatic liquid-level detection for reliable aspiration.
Measures K+, Na+, Cl−, Ca2+, pH and TCO₂ (model dependent), with flexible parameter configurations available.
Sealed aluminium electrode shielding system prevents external interference and helps ensure stable, precise measurements.

Automatic air-and-liquid sequential flushing technology cleans the probe internally and externally to minimise cross-contamination.
Supports automatic two-point calibration, graphical quality control and three levels of QC management.
Integrated reagent pack automatically collects waste and provides environmentally friendly operation with simplified reagent management.
Features a 7-inch colour touch screen with graphical menus and real-time display of sample tray status.
Stores more than 100,000 test results and supports barcode scanning, USB connectivity and LIS/host computer integration.
Supports STAT sample priority testing and provides automatic system diagnostics, reagent monitoring and maintenance alerts to improve laboratory efficiency.

Hematology

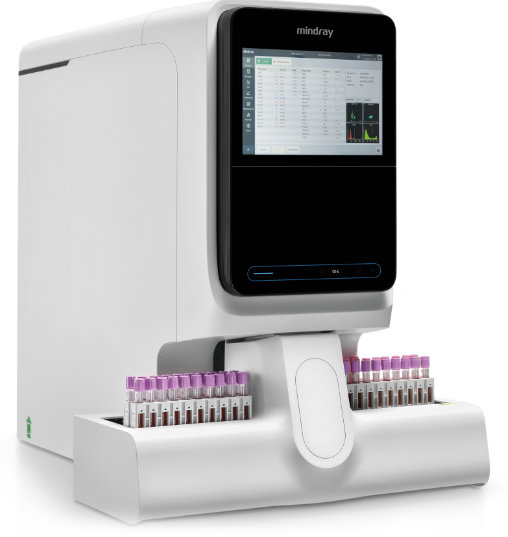

MINDRAY BC-7600

The Mindray BC-7600 Series is a fully automated 5-part differential hematology analyser designed around the concept of “One Tube, One Process with Maximum Efficiency.”

Combines CBC, differential and ESR testing in a single analyser, eliminating the need for a separate ESR instrument.
Delivers CBC + ESR results from a single sample in as little as 40 seconds.
Integrated ESR technology provides reliable ESR results with strong correlation to the traditional Westergren method.
Combined CBC and ESR examination helps minimise the impact of dehydration, polycythaemia vera and anaemia on ESR interpretation.
Advanced automation standardises the testing process and reduces result variability.

Automated ESR testing improves laboratory safety by reducing manual handling and associated biosafety risks.
Uses the same quality control materials and calibrators as the BC-6800Plus Series for streamlined laboratory management.
Provides CBC and ESR detection within a single integrated platform, reducing equipment footprint and saving laboratory space.
Supports reticulocyte and nucleated red blood cell (NRBC) analysis for expanded clinical information.
Features advanced SF Cube technology for accurate white blood cell differential analysis and identification of abnormal cell populations.
Includes automated re-testing and user-defined re-examination rules to minimise manual intervention and improve laboratory efficiency.

Mindray BC-7600

Mindray CAL 9000

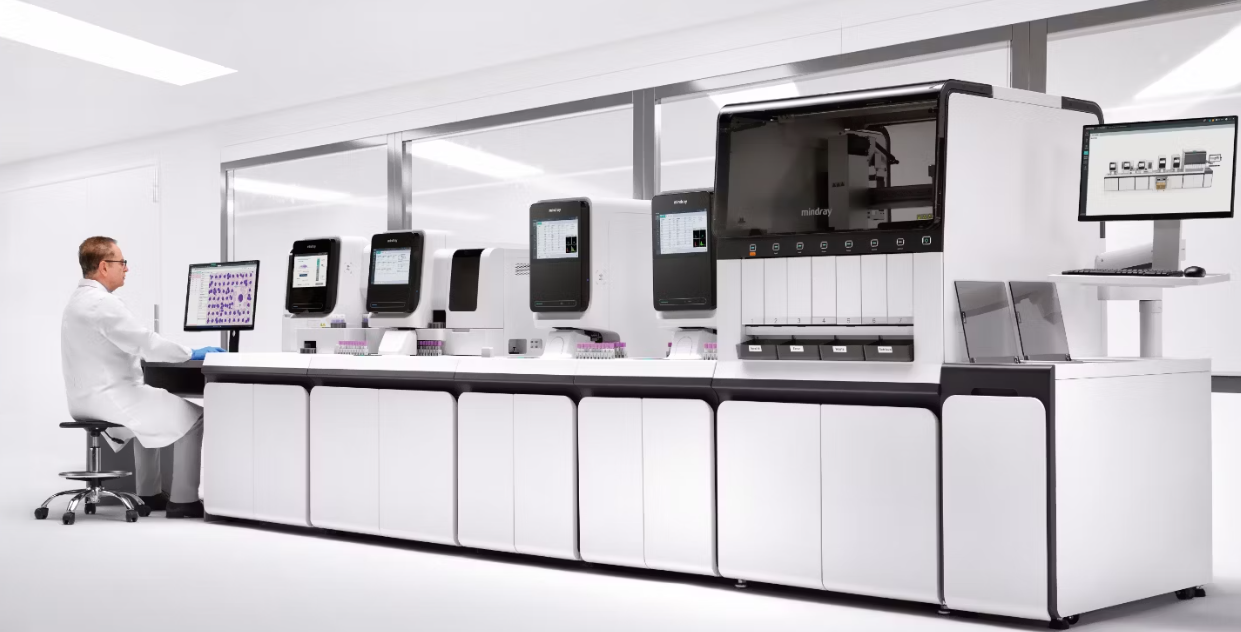

MINDRAY CAL 9000

The Mindray CAL 9000 is a fully automated cellular analysis line designed to streamline laboratory workflow from sample loading through to result reporting.

Integrates hematology, ESR, slide preparation and staining, digital morphology and HbA1c testing into a single automated solution.
Supports a one-tube workflow, enabling multiple tests to be performed from a single EDTA sample tube.
Features a flexible and scalable modular design that can be configured to suit different laboratory throughput requirements.
Provides seamless connectivity between analysers and workflow modules to improve laboratory efficiency.
Combines CBC and ESR testing within a single workflow to reduce manual handling and simplify operations.

Integrates digital morphology review to support automated blood film analysis and verification.
Automated slide preparation and staining helps standardise slide quality and reduce operator intervention.
Intelligent sample routing ensures samples are automatically directed to the appropriate testing modules.
Enables standardisation of the complete hematology workflow, from sample processing to result review.
Supports high-throughput laboratory operations while helping improve turnaround times.
Designed to enhance automation, workflow efficiency and laboratory productivity through a comprehensive cellular analysis platform.

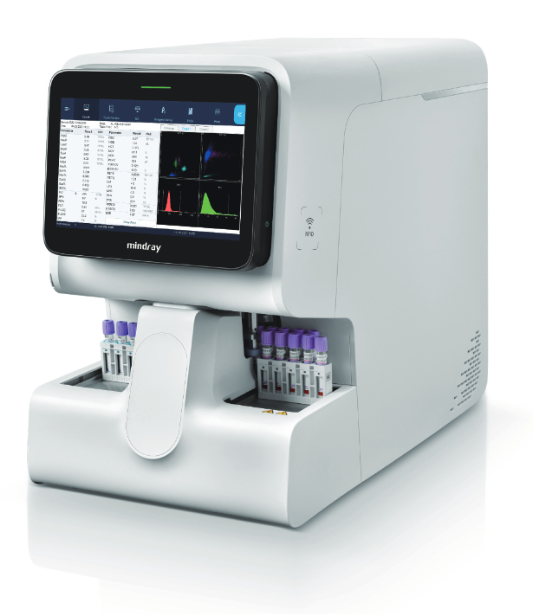

MINDRAY BC-760 & BC-780

The Mindray BC-760 & BC-780 Series are fully automated hematology analysers with integrated ESR testing, designed to provide comprehensive hematology analysis from a single platform.

Utilises SF Cube Cell Analysis Technology, combining scatter, fluorescence and 3D analysis for advanced cell differentiation and identification.
Provides 6-part white blood cell differentiation, including immature granulocyte (IMG) analysis for enhanced clinical information.
Integrated ESR testing enables CBC + ESR results from a single sample, improving workflow efficiency and reducing manual handling.
Supports reticulocyte (RET), immature platelet fraction (IPF), NRBC and optical platelet analysis (model dependent) for expanded diagnostic capability.
Multiple low-count analysis modes, including WBC-3X and PLT-O 5X, help improve result reliability for low-value WBC and platelet samples.

Optical platelet measurement and platelet breakdown functions help reduce manual review workload and improve confidence in platelet results.
Delivers throughput of up to 80 tests per hour for CBC + DIFF analysis and up to 40 tests per hour for CBC + DIFF + ESR testing.
Supports body fluid analysis with dedicated body fluid parameters and reporting capabilities.
Stores up to 150,000 results, including numeric and graphical information, for efficient data management and review.
Provides up to 109 measurable parameters and 41 reportable parameters from whole blood samples.
Designed to deliver reliable results for abnormal or interference-prone samples while improving laboratory efficiency and standardisation.

Mindray BC-760 & BC-780

Sigtuple AS76

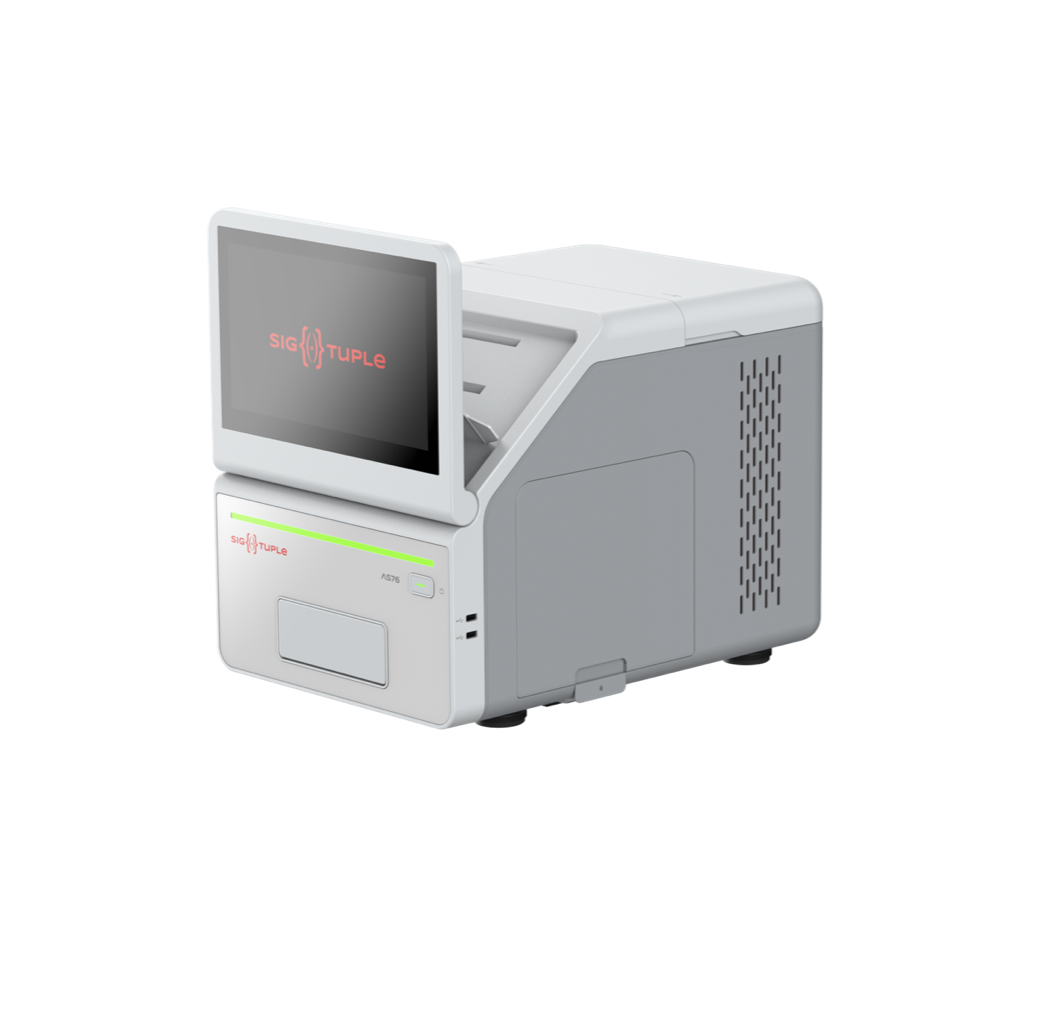

SIGTUPLE AS76

The SigTuple AS76 is an AI-powered digital morphology analyser designed to automate peripheral blood smear (PBS) review while maintaining the familiarity of manual microscopy.

Delivers true 100x oil immersion image quality with natural cell colours and no artificial image enhancements.
Uses AI-assisted morphology analysis to automatically identify the monolayer region for precise cell review.
Pre-classifies up to 200 white blood cells for faster and more consistent differential analysis.
Evaluates more than 2,000 red blood cells using ICSH grading principles to support reliable morphology assessment.

Provides platelet estimation and morphology assessment using a familiar microscope-based review approach.
Processes up to 12 slides per hour with a 6-slide capacity tray for improved laboratory efficiency.
Automated oil dispensing and barcode scanning streamline workflow and reduce manual intervention.
Supports a load-and-walkaway workflow, allowing automated image acquisition while staff focus on other tasks.
Handles slides with diverse staining and smearing techniques, including both manual and automated preparations.
Features bi-directional LIS integration (ASTM/HL7) for seamless connectivity with laboratory information systems.
Supports remote review with both cloud and on-premise deployment options, helping extend specialist expertise to any location.

Immunology

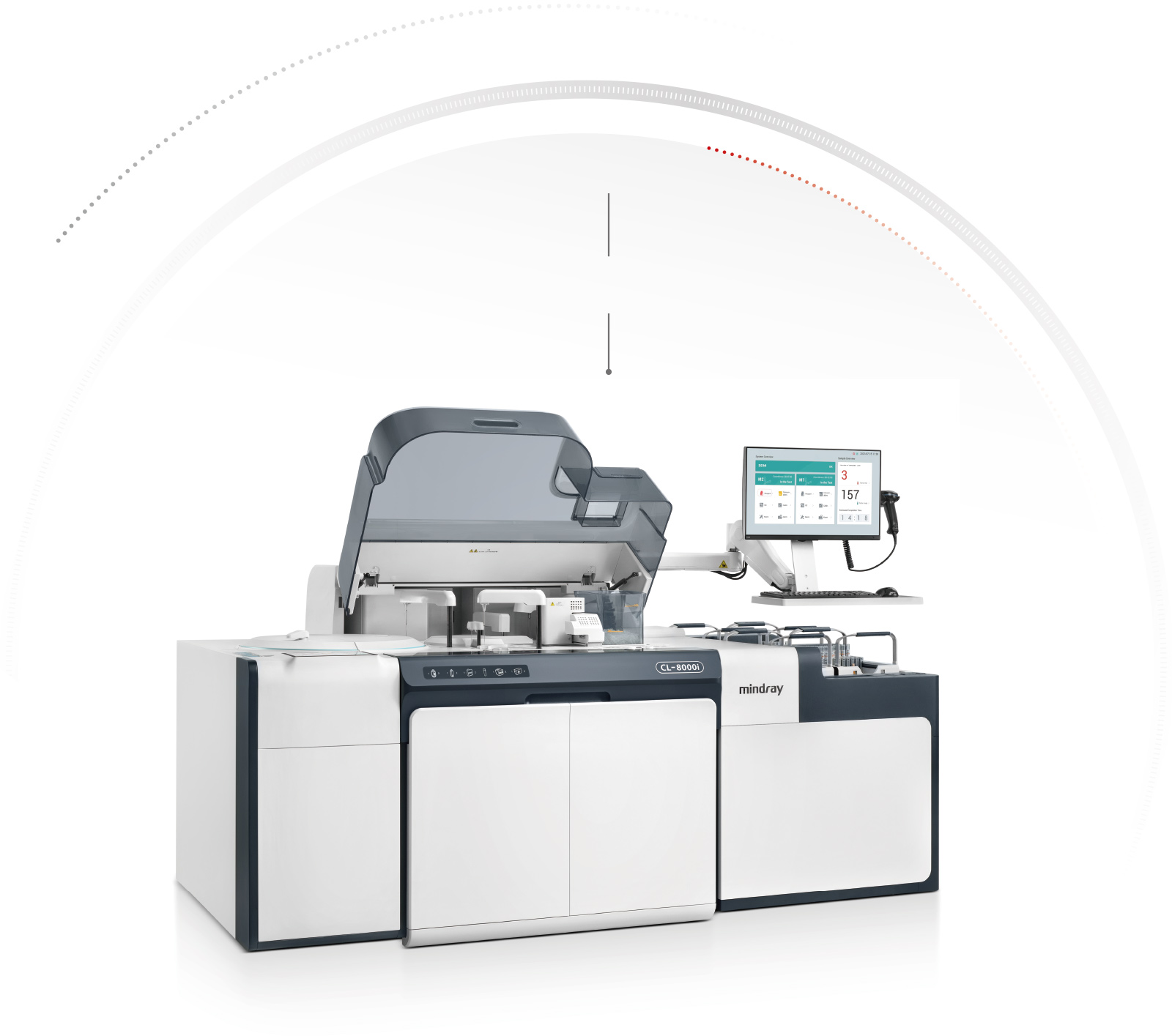

MINDRAY CL-8000i

The Mindray CL-8000i is a high-throughput chemiluminescence immunoassay analyser designed for large-volume laboratories requiring rapid turnaround times and continuous operation.

Delivers a throughput of up to 600 tests per hour to support high-volume testing demands.
Supports continuous sample loading and reagent replacement without interrupting testing operations.
Provides up to 50 sample positions and continuous access functionality for efficient workflow management.
Accommodates up to 42 reagent positions with onboard refrigeration for stable reagent storage.
Utilises alkaline phosphatase (ALP)-AMPPD chemiluminescence technology for sensitive and reliable assay performance.

Features patented magnetic separation technology to improve reaction efficiency and analytical reliability.
Offers first-result turnaround time of approximately 15 minutes to support rapid clinical decision-making.
Intelligent sample management enables automatic sample re-testing, dilution and reflex testing workflows.
High-capacity consumable design supports extended unattended operation and improved laboratory productivity.
Integrated quality control and calibration management functions help ensure consistent analytical performance.
Designed to provide high throughput, reliable results and operational efficiency for medium to large clinical laboratories.

Mindray CL-8000i

Mindray CL-900i

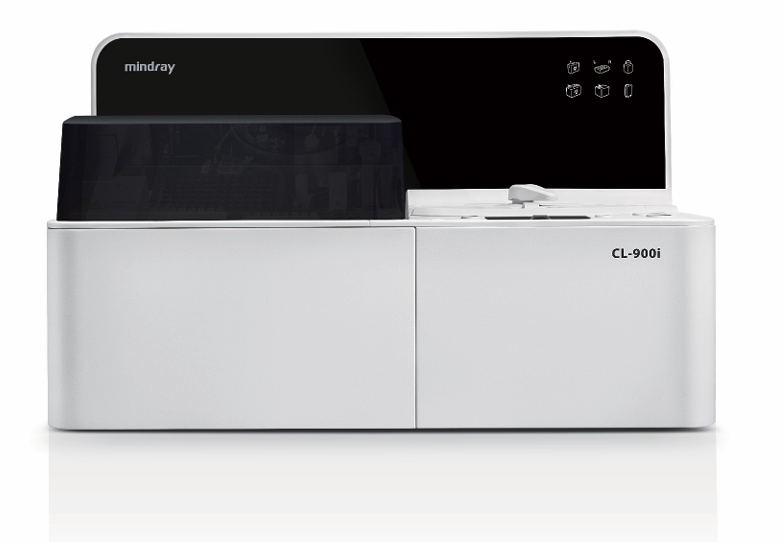

MINDRAY CL-900i

The Mindray CL-900i is one of the world’s smallest fully automated chemiluminescence immunoassay (CLIA) analysers, combining high testing capacity and fast assay speed in a compact footprint.

Delivers a throughput of up to 180 tests per hour to support routine immunoassay testing workloads.
Utilises an enhanced ALP-AMPPD chemiluminescence method with micron superparamagnetic particle technology.
Features 50 sample positions and 15 reagent positions for efficient sample and reagent management.
Continuous loading and unloading of samples, reagents, substrates and cuvettes enables uninterrupted operation.

Precise 4-phase magnetic separation technology provides reliable and consistent assay performance.
Automatic sample dilution from 1:2 to 1:40 supports a wide range of testing requirements.
Wiper washing technology enhances efficiency and helps minimise carryover.
Solid-liquid waste separation design promotes environmentally friendly operation.
One-key start-up and real-time consumables status monitoring simplify daily operation.
Intelligent consumables management and intuitive software interface help reduce operator workload and improve usability.
Comprehensive test menu covering thyroid, fertility, tumour markers, infectious disease, cardiac, diabetes, bone metabolism and other immunoassay applications.

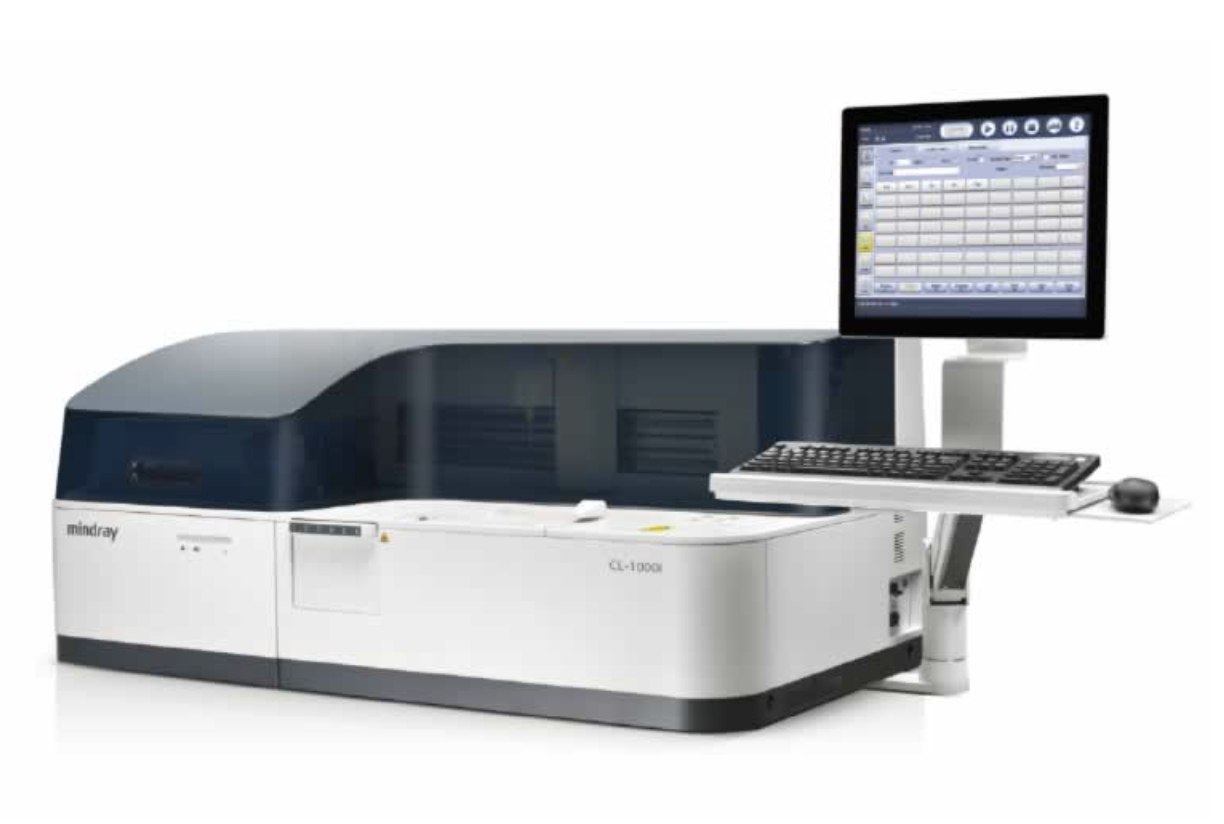

MINDRAY CL-1000i

The Mindray CL-1000i is a fully automated chemiluminescence immunoassay analyser designed for small to medium-sized laboratories, delivering performance consistent with the CL-2000i in a compact benchtop system.

Throughput of up to 180 tests per hour for efficient routine immunoassay testing.
Large sample and reagent capacity to support continuous laboratory workflow.
Micron Super Paramagnetic Particle (SPMP) technology provides high suspension capability and reliable reaction performance.
ALP-labelled reagents and AMPPD substrate technology deliver highly sensitive immunoassay testing.
Four-stage magnetic separation technology enhances analytical performance and quality control.

Enhanced reaction system with precisely controlled temperature and improved PMT detection system for consistent and reliable results.
Non-contact vortex mixing reduces contamination risk during reaction processing.
Continuous sample loading and unloading via sample racks with STAT sample prioritisation for urgent testing.
Intelligent sample and reagent probe with liquid level detection, clot detection and collision protection.
Random-access cuvette loading allows consumables to be replenished without pausing testing operations.
User-friendly operation with real-time rack and consumables status monitoring to improve laboratory efficiency.

Mindray CL-1000i

Randox Vivalytic

Rapid PCR

Randox Vivalytic

The Randox Vivalytic is a fully automated, cartridge-based molecular diagnostic platform that consolidates nucleic acid extraction, PCR amplification and detection into a single compact analyser. Powered by Randox Biochip Technology, enabling multiplex testing and the simultaneous detection of multiple targets from a single patient sample.

Supports both High-Plex and Low-Plex molecular testing capabilities for a wide range of clinical applications.
Comprehensive infectious disease testing menu covering respiratory, genitourinary and hospital-acquired infections.
Fully automated sample-to-answer workflow with no requirement for separate extraction or amplification equipment.
Simple four-step workflow: enter sample information, scan cartridge, add sample and insert cartridge for automated processing.

User-friendly cartridge system requires minimal hands-on time and no specialised laboratory training.
All reagents are contained within sealed test cartridges, reducing preparation requirements and contamination risk.
Compact benchtop design with wireless connectivity and no requirement for additional peripherals.
Multiple analysers can be wirelessly connected and centrally managed through a master platform.
Compatible with a variety of sample types, including urine, swabs and sputum, depending on the test cartridge used.
Designed for both laboratory and point-of-care settings, delivering rapid molecular diagnostic results through a hygienic and space-saving platform.

Fully Automated URINE ANALYZERS

Fully automated measurement process; 130 tests/hour throughput
Revolutionary particle visualization and recognition utilizing both bright-field and phase contrast microscopy
Zoomable HPF-like images
Manual microscopy mode: Real-time view of any view field of the cuvette to see moving microorganisms as well
Dual-view for both bright-field and phase contrast images
Fully automated sample preparation requiring only low sample volume
Automated QC analysis and maintenance procedures
No need for liquid reagents or calibrators
UriSed 3 PRO and LabUMat 2 together make a Complete Urine Laboratory System
Integration to laboratory or hospital information systems
